PRODUCT

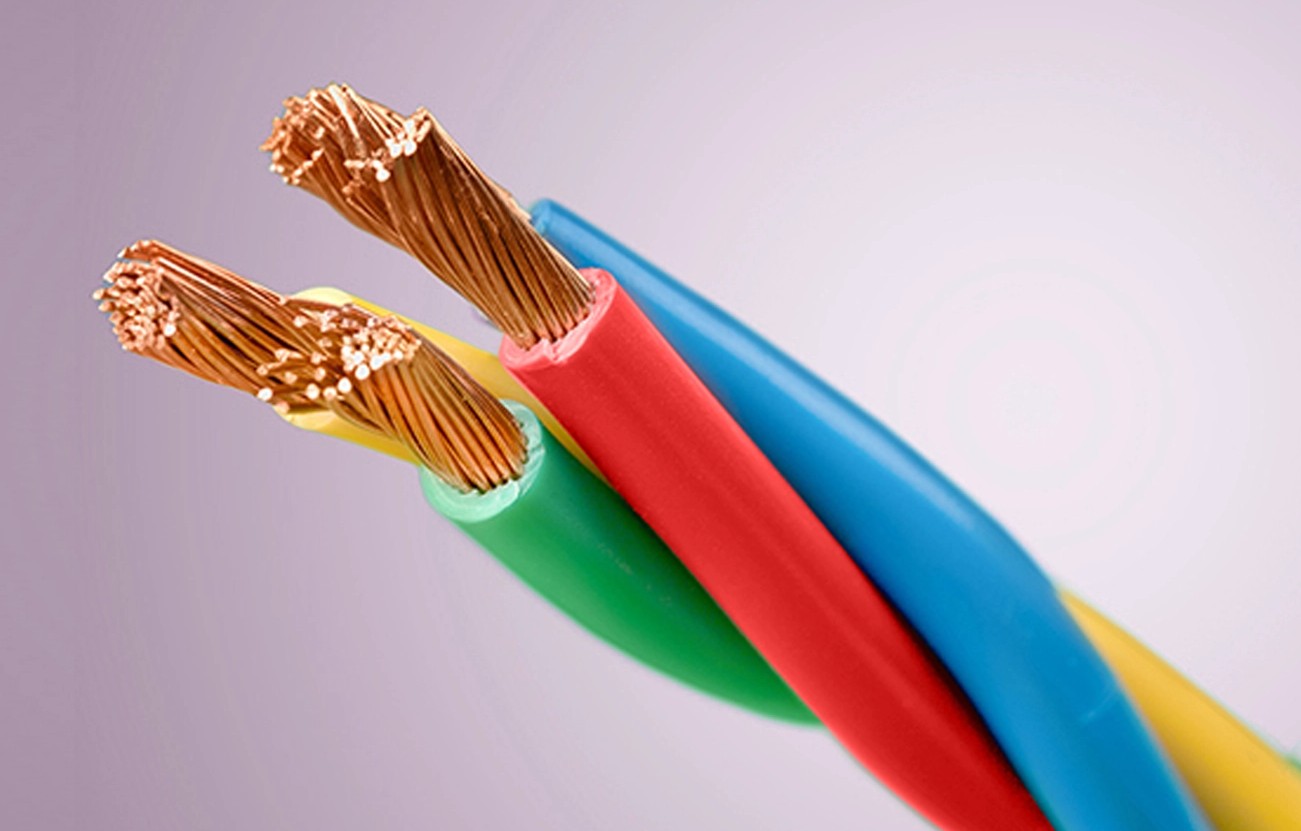

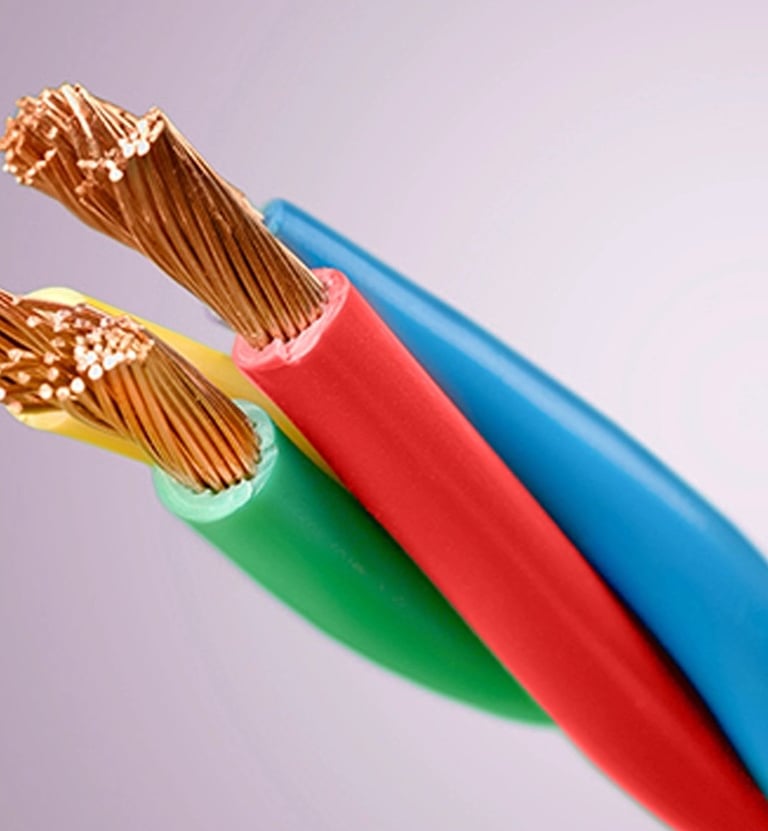

LSZH & PVC Insulated Wires

LSZH (Low Smoke Zero Halogen) and PVC insulated wires are designed for safe and reliable internal wiring applications in residential, commercial, and industrial installations. These cables are manufactured using high-conductivity copper conductors to ensure efficient current flow and long-term durability.

LSZH cables are ideal for environments where fire safety is critical, as they emit low smoke and no toxic halogen gases during combustion. PVC insulated wires provide cost-effective and dependable solutions for general electrical wiring requirements.

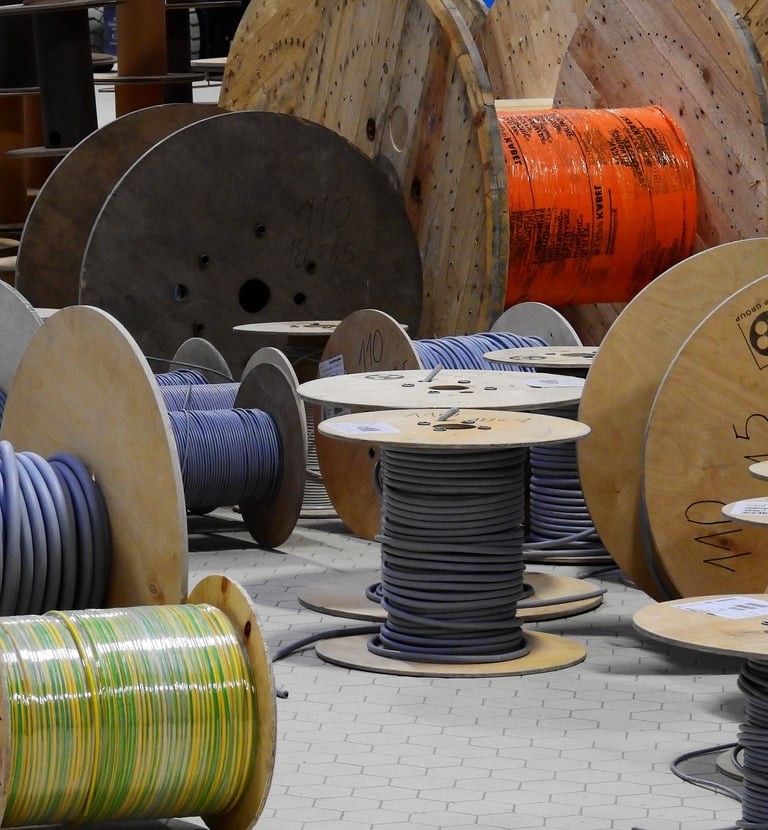

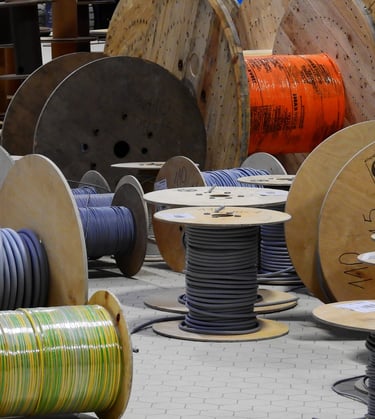

Power Cables

Power cables (LV cables) are designed for efficient transmission and distribution of electrical energy across industrial, commercial, and infrastructure projects. Manufactured using high-quality copper or aluminium conductors, these cables ensure reliable performance under varying load conditions. With robust insulation and protective sheathing, they are suitable for both indoor and outdoor installations, including underground applications, offering long service life and safety.

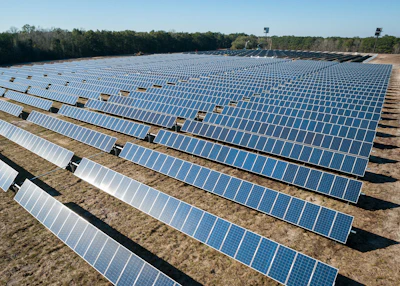

Solar Cables

Solar cables are specially designed for use in photovoltaic (PV) systems, ensuring safe and efficient transmission of DC power from solar panels to inverters and other electrical equipment. These cables are built to perform reliably under extreme environmental conditions such as high UV exposure, temperature variations, and mechanical stress.

Manufactured using high-conductivity tinned copper conductors and cross-linked halogen-free insulation, solar cables offer superior durability, flexibility, and long service life, making them ideal for both rooftop and large-scale solar installations.

Applications:

• Residential and commercial buildings

• Distribution boards

• Public infrastructure

• High-occupancy facilities

Available Options:

• Single core / Multi-core

• FR / FRLS / LSZH grades

• Various voltage ratings as per project requirement

Properties:

• High electrical conductivity and efficient power transmission

• Flame retardant (FR / FRLS / LSZH options available)

• Suitable for underground and outdoor installations

• Durable construction for long service life

Specification:

• Conductor: Copper (Plain/Tinned) or Aluminium

• Insulation: XLPE / PVC / HRPVC / LSZH

• Sheath: PVC / HRPVC / HDPE / FR / FRLS / LSZH

• Armour: GI / Aluminium wire or strip (as required)

• Voltage Grade: Up to 3.3 kV

Properties:

• UV, ozone, and weather resistant

• Halogen-free with low smoke and toxicity during fire

• Flame retardant and fire-resistant

• High flexibility for easy installation

• Resistant to chemicals, oil, and abrasion

Specification:

• Conductor: Tinned copper, Class 5 flexible

• Insulation & Sheath: Cross-linked halogen-free polyolefin (XLPO)

• Voltage Rating: Up to 1.5 kV AC / 1.5–2.0 kV DC

• Temperature Range: -40°C to +90°C (120°C max conductor)

• Size Range: 1.5 sqmm to 240 sqmm

Specification:

• EN 50618 (H1Z2Z2-K)

• TÜV 2Pfg 1169/08.2007 (PV1-F)

• IEC 60228

• EN 60811 / EN 50396

• HD 605 / DIN 53367

Standards:

• IEC 60502-1

• BS 6346 / BS 5467 / BS 6622

• IS 1554 (Part 1)

• IS 7098 (Part 1 & 2)

OUR PRODUCTS MEET STANDERDS
